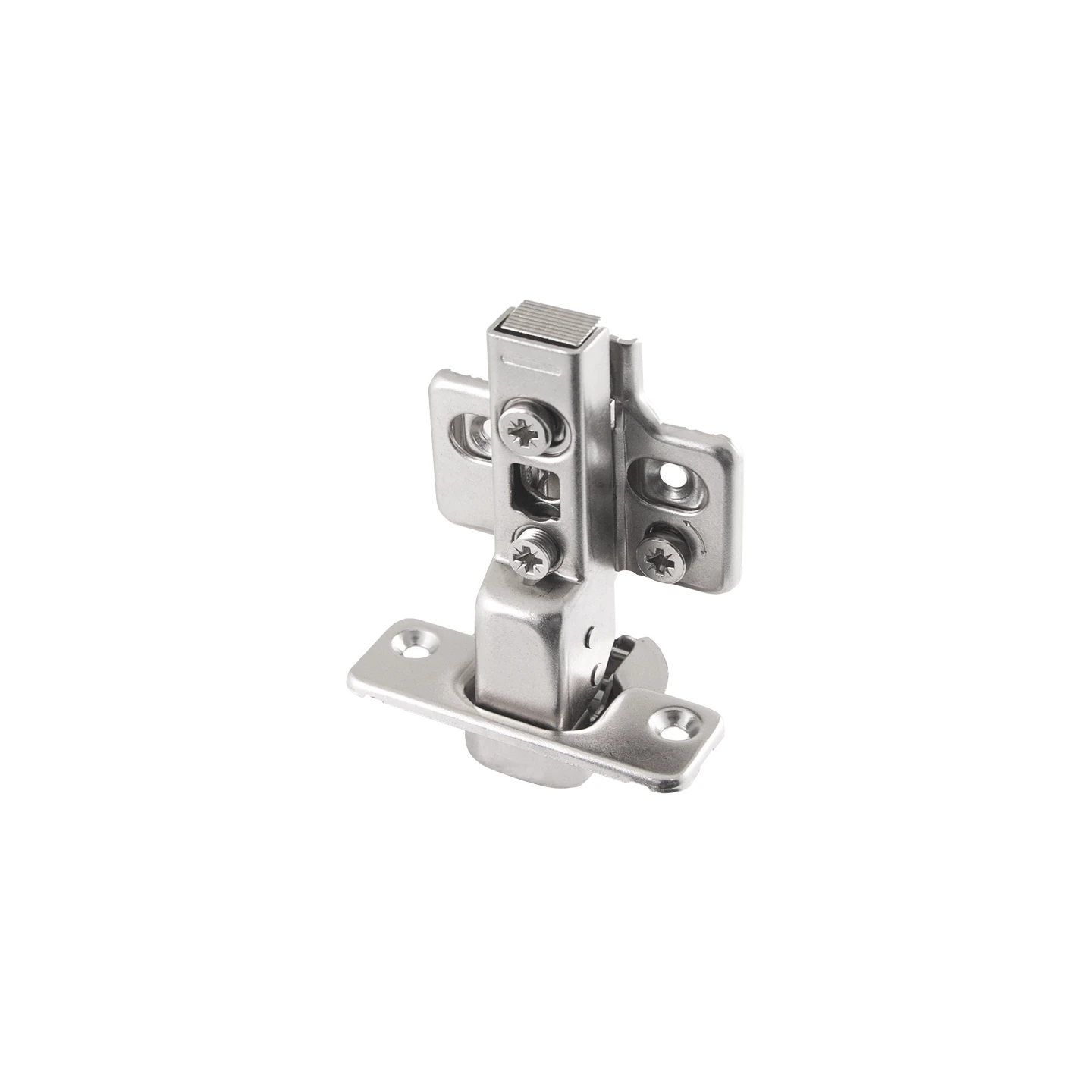

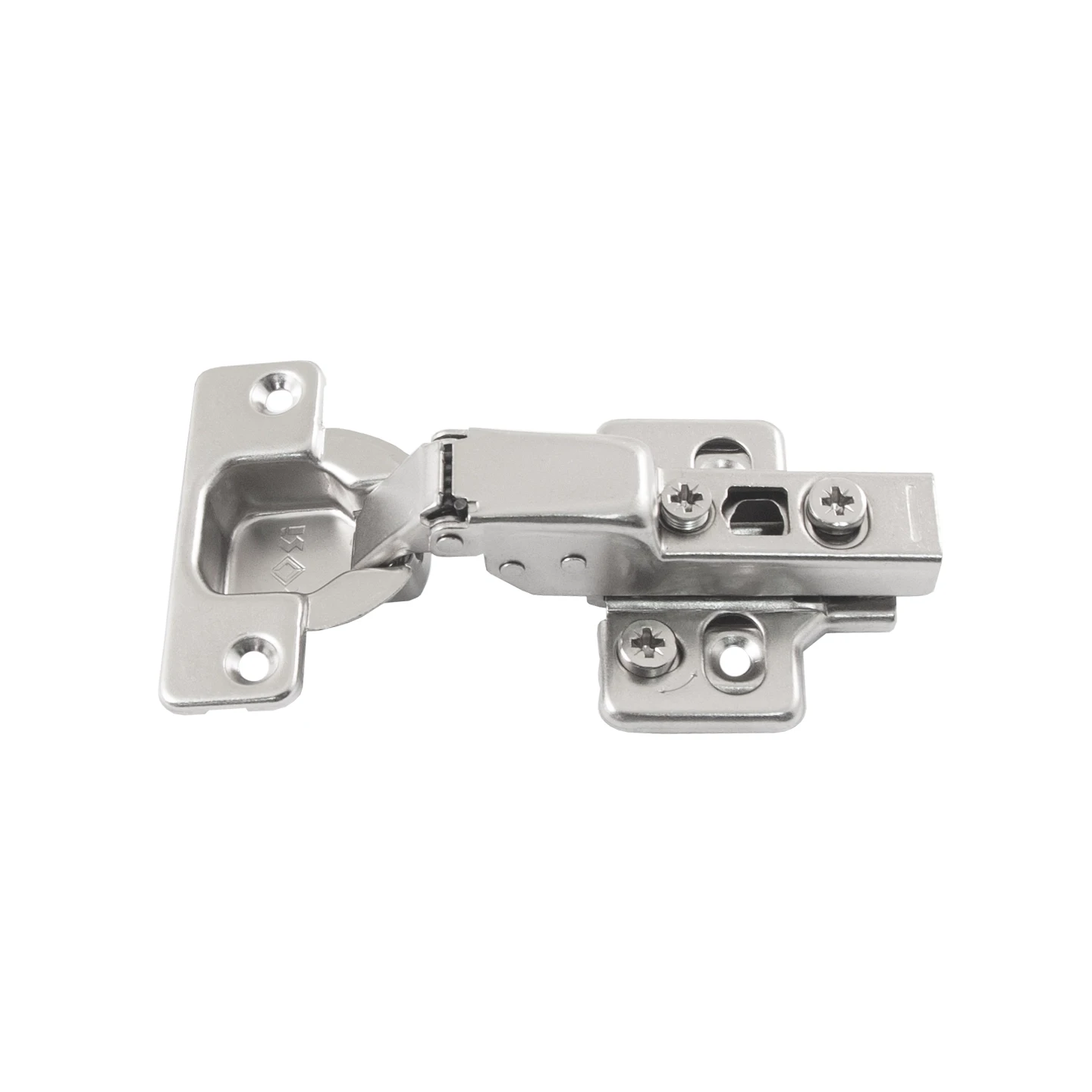

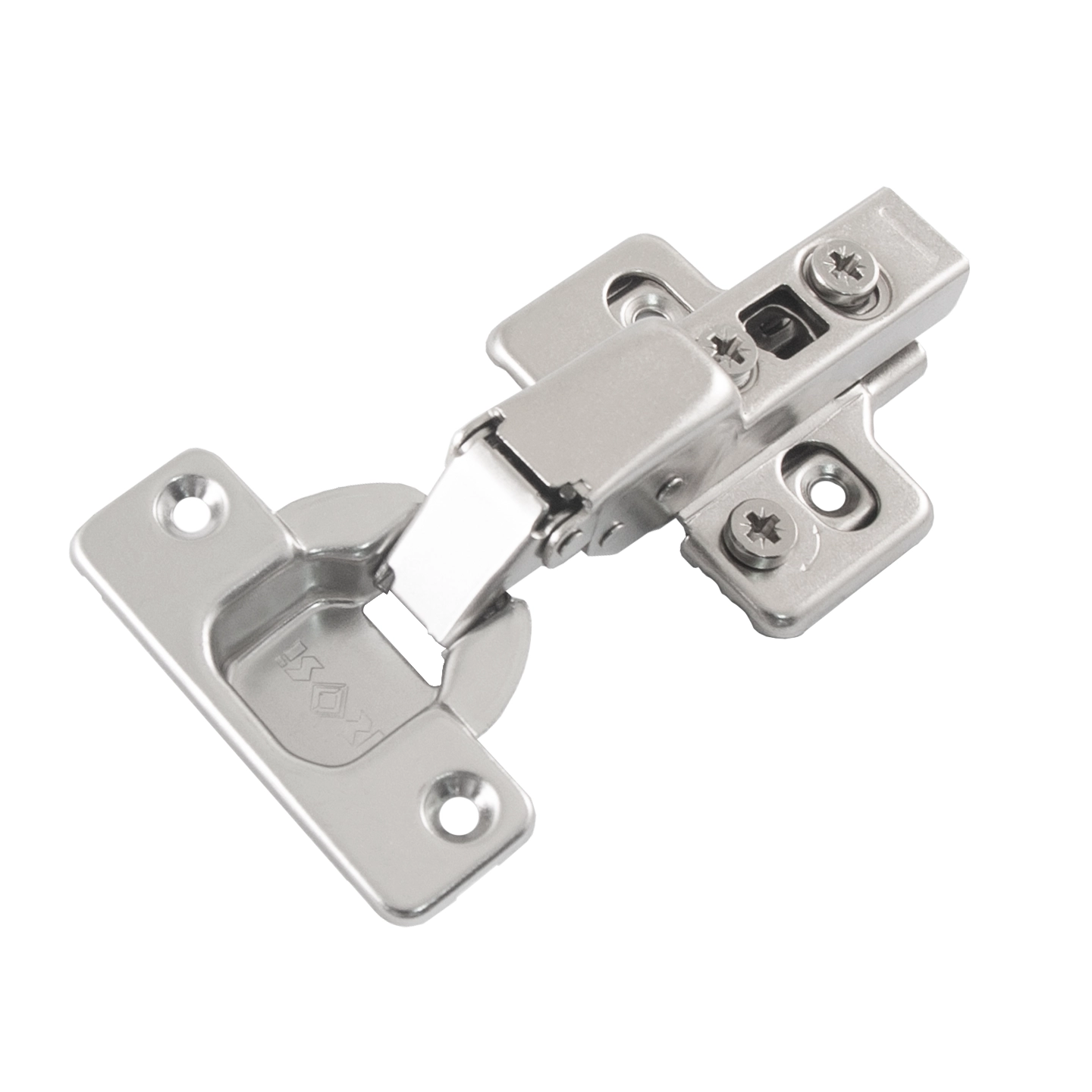

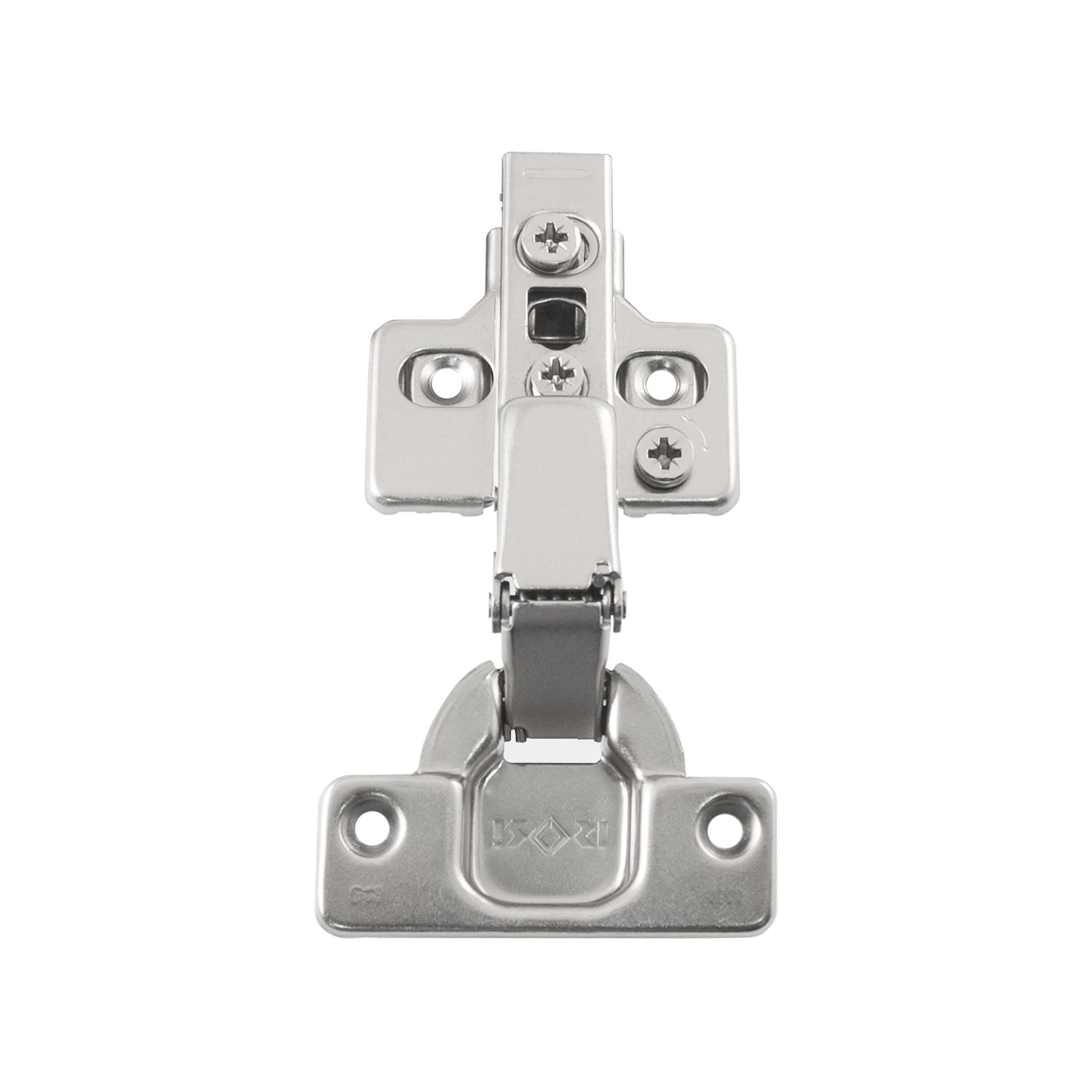

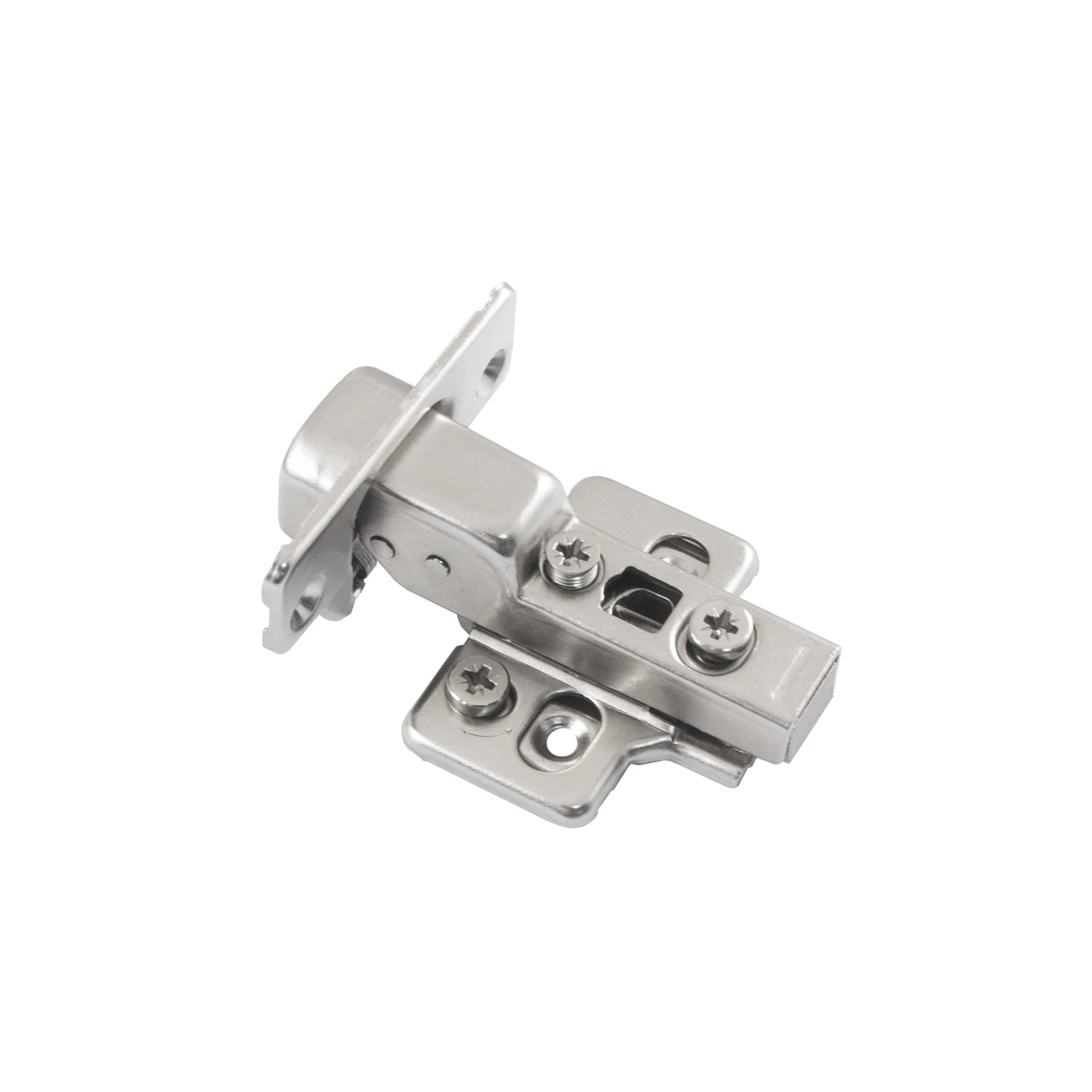

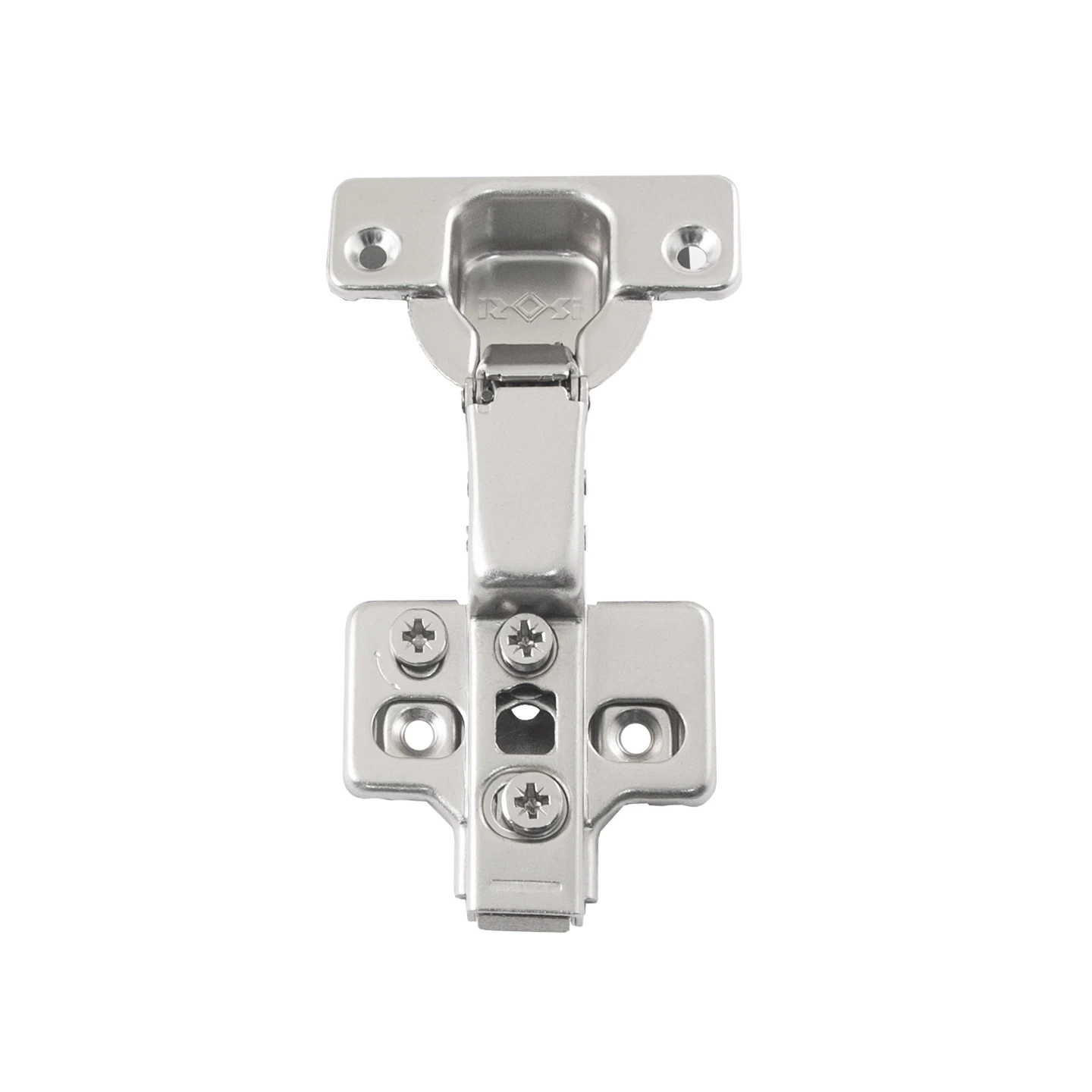

Hinge 110° 3D half overlay, soft-close, click-on
Item №: 11PR.5223N.3D.2.GAMMA
Price per psc.
0.97
€ / psc.
Opening angle
Detailed information
| Opening angle | Adjustment | Type | Door thickness (mm) | Carcass angle | Quantity per package |
|---|---|---|---|---|---|
| 110° | 3D | Self-closing | 16 - 24 | Standard 90° | 100 |

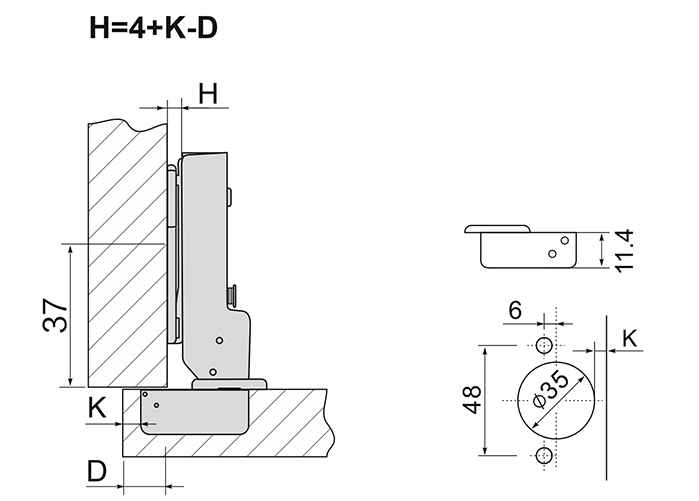

| K, mm | 3 | 4 | 5 | 6 | 7 |
| D, mm (H=0) | 7 | 8 | 9 | 10 | 11 |
H - height of mounting plate
D - door overlay
K - cup distance
