PIR motion sensor 12V DC/24V DC 60W range 2m - for built -in or surface mounting

PIR motion sensor 12V DC/24V DC 60W range 2m - for built -in or surface mounting

Item №: 05WK.90468
Brand: ROSI
Type: Sensor
Price per psc.
6.39
€ / psc.
Power

Detailed information

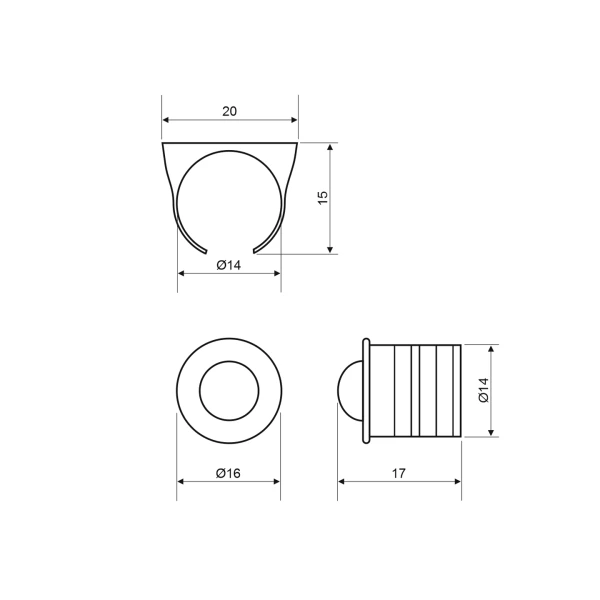

Installation Power Output voltage Size (mm)
For built-in or surface mounting 60 W 12V DC / 24V DC ф16.5 х 18
PIR motion sensor 12V DC/24V DC 60W range 2m - for built-in or surface mounting.
PIR (passive infrared ) sensor.
It detects warmth emitted by the objects that fall into its detection range and turns on / off the connected load , depending on the change of the thermal background. The light turns off 30 seconds after leaving the site.
Detection distance: max 2 m.

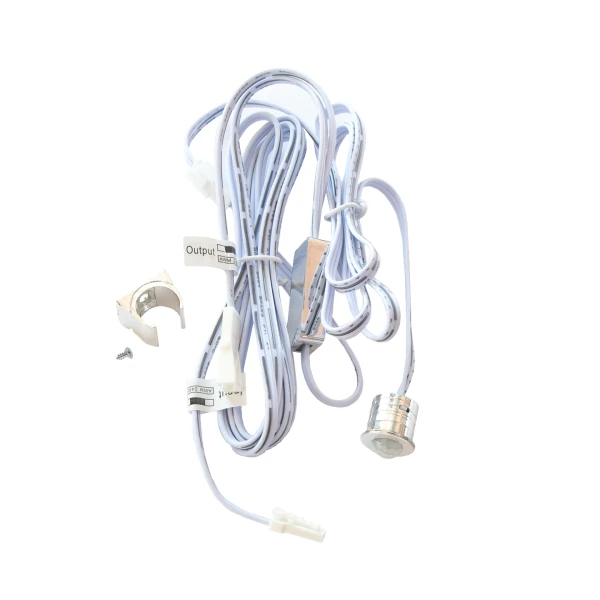

Cable length: 1500 mm.
It is not recommended Installation near air conditioners or heaters.

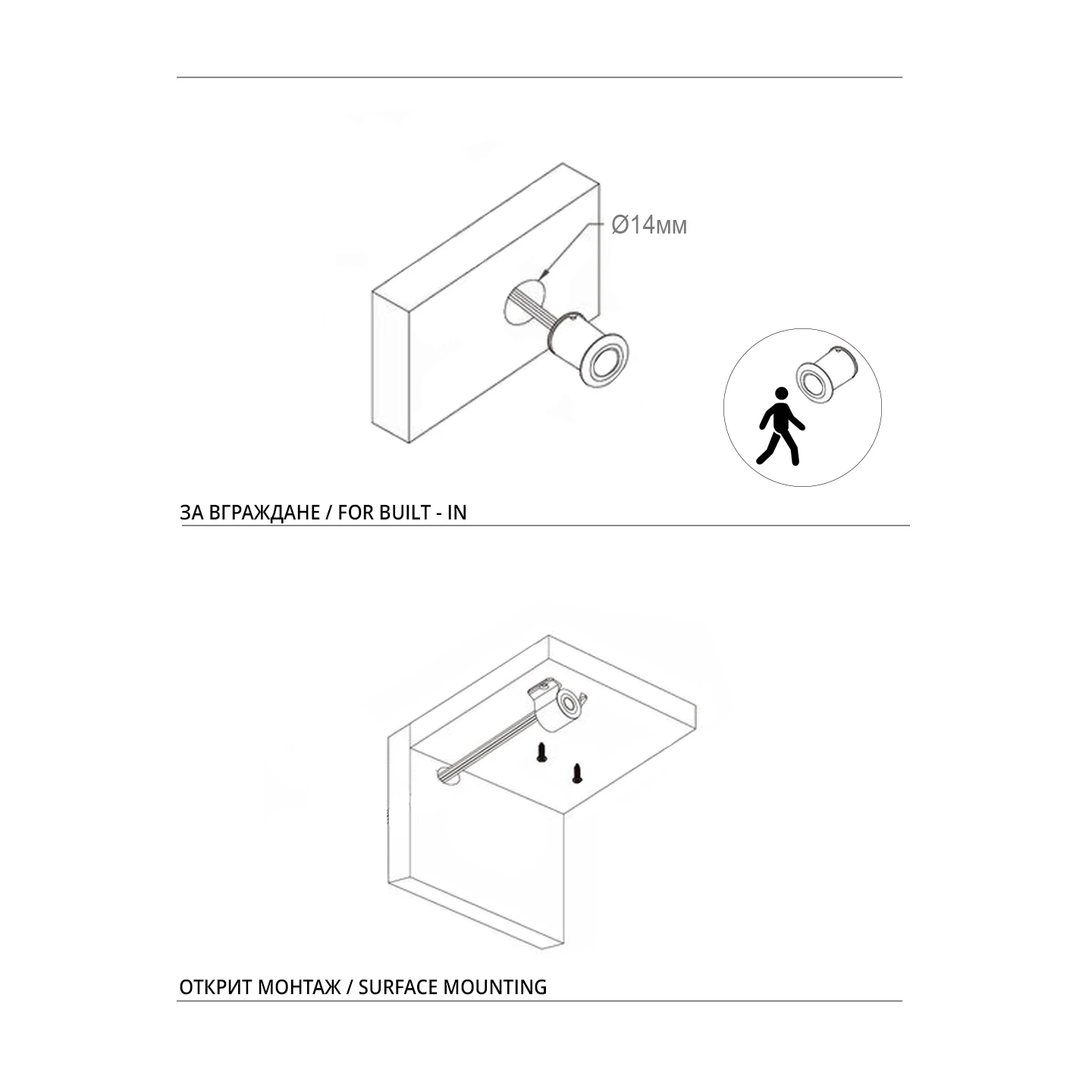

Installation for built-in or surface mounting.
For surface mounting -  place the sensor in the hole of the base and attach it to the desired surface.
Connect the OUTPUT connector to the load, and the INPUT connector to the power supply for LED lighting (12V DC / 24V DC).

To connect the power supply and the sensor a junction box must be used, not to cut the plug.
