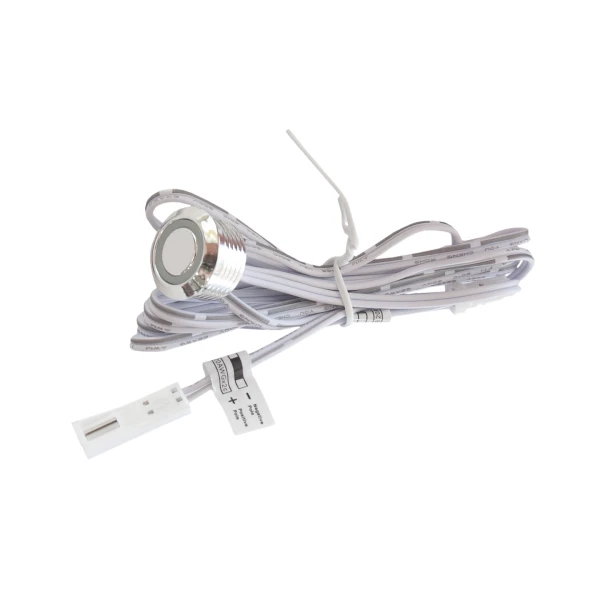

Touch dimmer switch 12V DC 60W surface mounting

The touch dimmer switch is designed to turn on / off and adjust the brightness level of the LED light.
Cable length: 1500 mm.

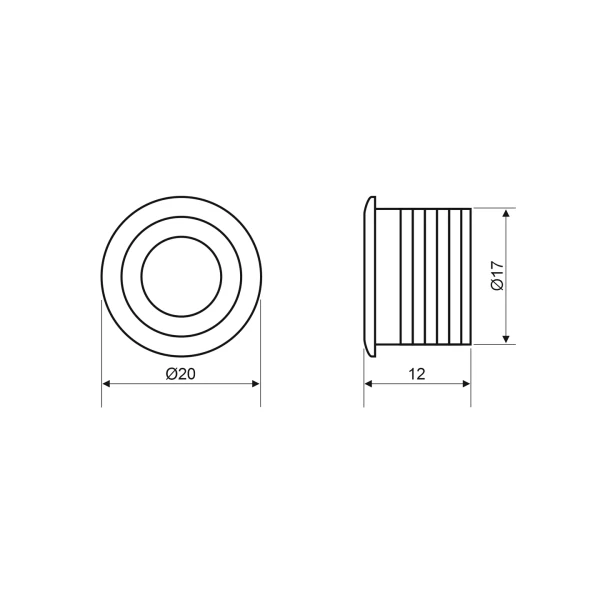

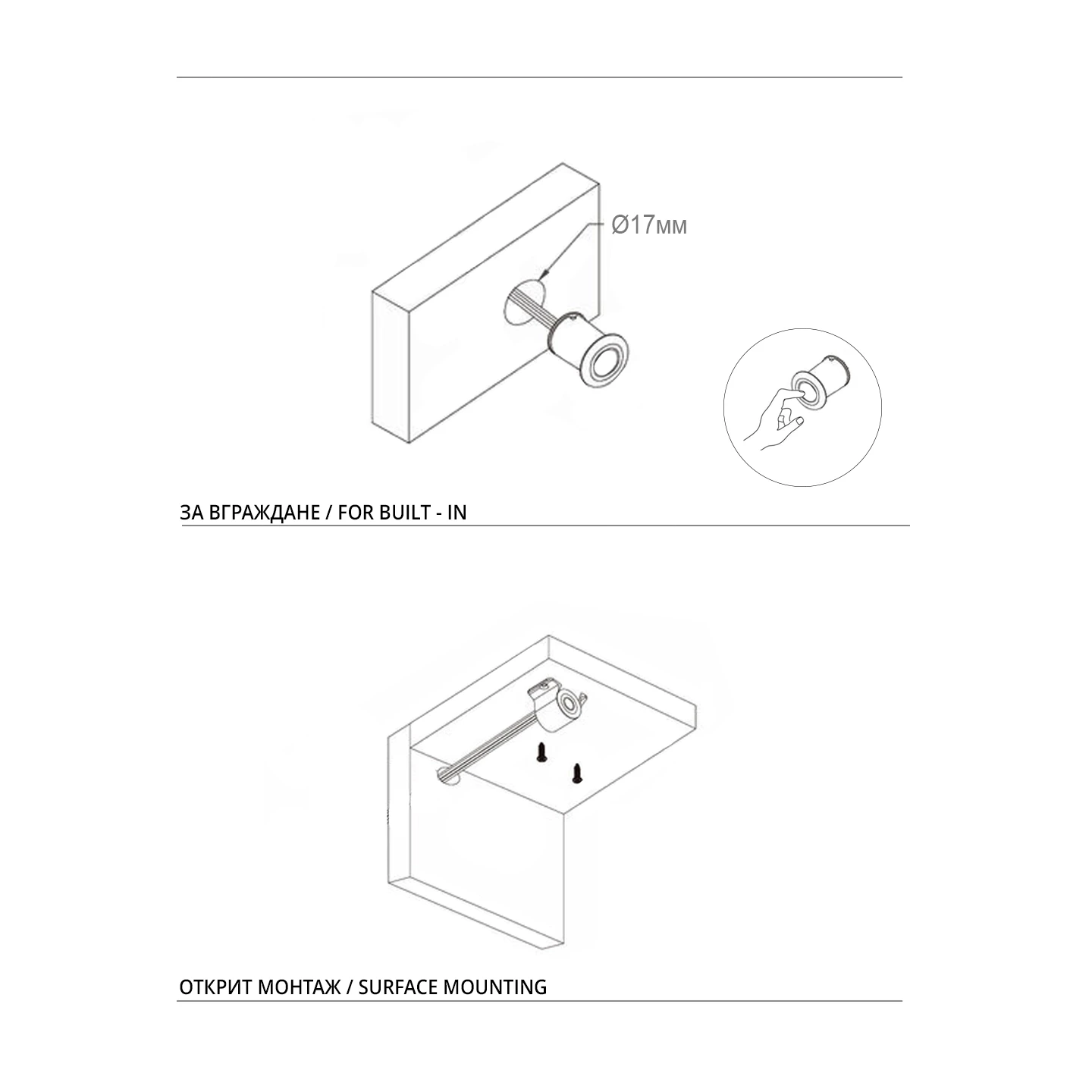

Installation - Drill a hole with a size of Ø17 mm. Mount the sensor externally (on the hole). Connect the OUTPUT connector to the load, and the INPUT connector to the power supply for LED lighting. By touching the button once, the switch turns the lighting on / off. By touching it for a long time, the switch will dim (adjust the brightness of the light) the lighting. The switch is intended only for LED lighting.

To connect the power supply and the sensor a junction box must be used, not to cut the plug.
